Governing AI agent access
to OneTrust.

Context

OneTrust is transforming from a monolithic governance suite into an AI-first platform. That transformation has many facets – in-product AI discovery, guided enablement, AI state transparency, and more. This case study covers one specific piece: building the MCP platform access layer for AI-advanced customers.

AI-advanced customers are enterprises actively building their own agents, copilots, and automation layers. They need a production-ready, governed way to connect those systems to OneTrust – with the right scopes, user-context binding, and a full audit trail. Without this, they either can't integrate at all or rely on overly broad API credentials with no governance story.

The problem

OneTrust's existing credential system was built for traditional server-to-server API integrations – module –scoped, no user-context binding, no AI attribution in audit logs. It wasn't designed for agents acting on behalf of users, or for the governance visibility that enterprise security and compliance teams require.

At the same time, the concepts involved – OAuth bearer tokens, mTLS, OBO (on-behalf-of) user binding, least-privilege scoping – are inherently complex. The UX challenge was to make these concepts legible and actionable for admins/developers setting up credentials and admins overseeing them.

Experience strategy

I led the UX strategy for the MCP credentialing experience across three connected surfaces: the credential creation flow for site admin, the credential detail and governance view for admins, and the intent-based scope model that bridges both.

Intent-based scoping

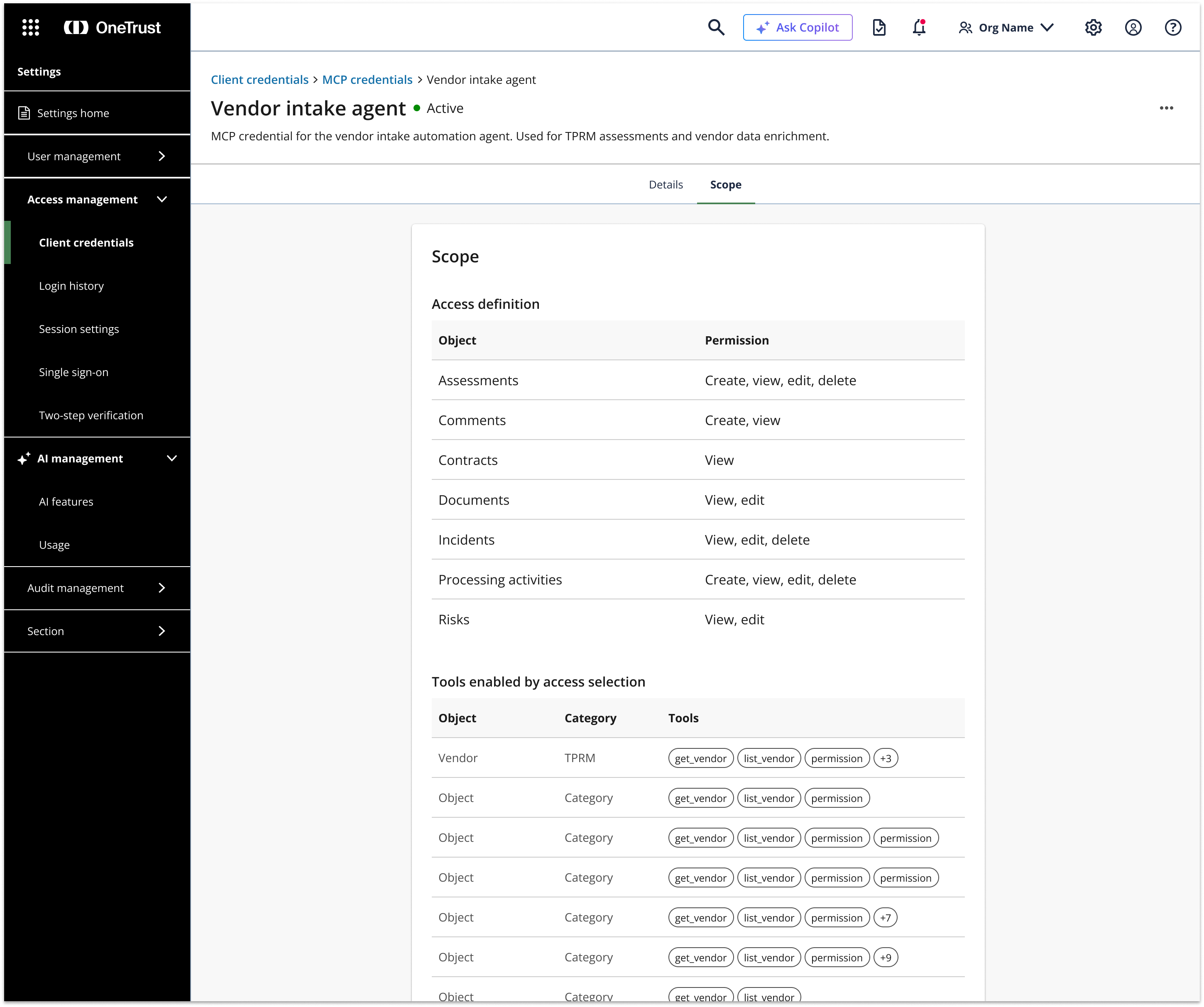

Rather than exposing raw API modules, the scope model is organized by workflows and tools — each with a plain-language description of what data it touches, what it can change, and what auth it requires. This shifts the mental model from technical permissions to business intent.

Two credential types, clearly differentiated

The flow forks at step one: AI Agent credentials (intent-based scopes, OBO user binding) versus Standard API credentials (module-based, no OBO). Making this distinction explicit upfront prevents misconfiguration and sets the right governance expectations from the start.

Governance as a first-class outcome

Audit attribution was designed in from the beginning — not bolted on. Every AI-mediated action surfaces a clear actor chain (user → agent → credential → tool → audit record) so security and compliance teams can distinguish AI activity from human activity in logs and record metadata.

AI Management — the admin entry point

The AI Management section gives admins a single place to govern all AI activity across the tenant — MCP credential counts, usage metrics, OBO failure rates, and an entry point to create new agent credentials. This surface makes AI activity visible before anything goes wrong.

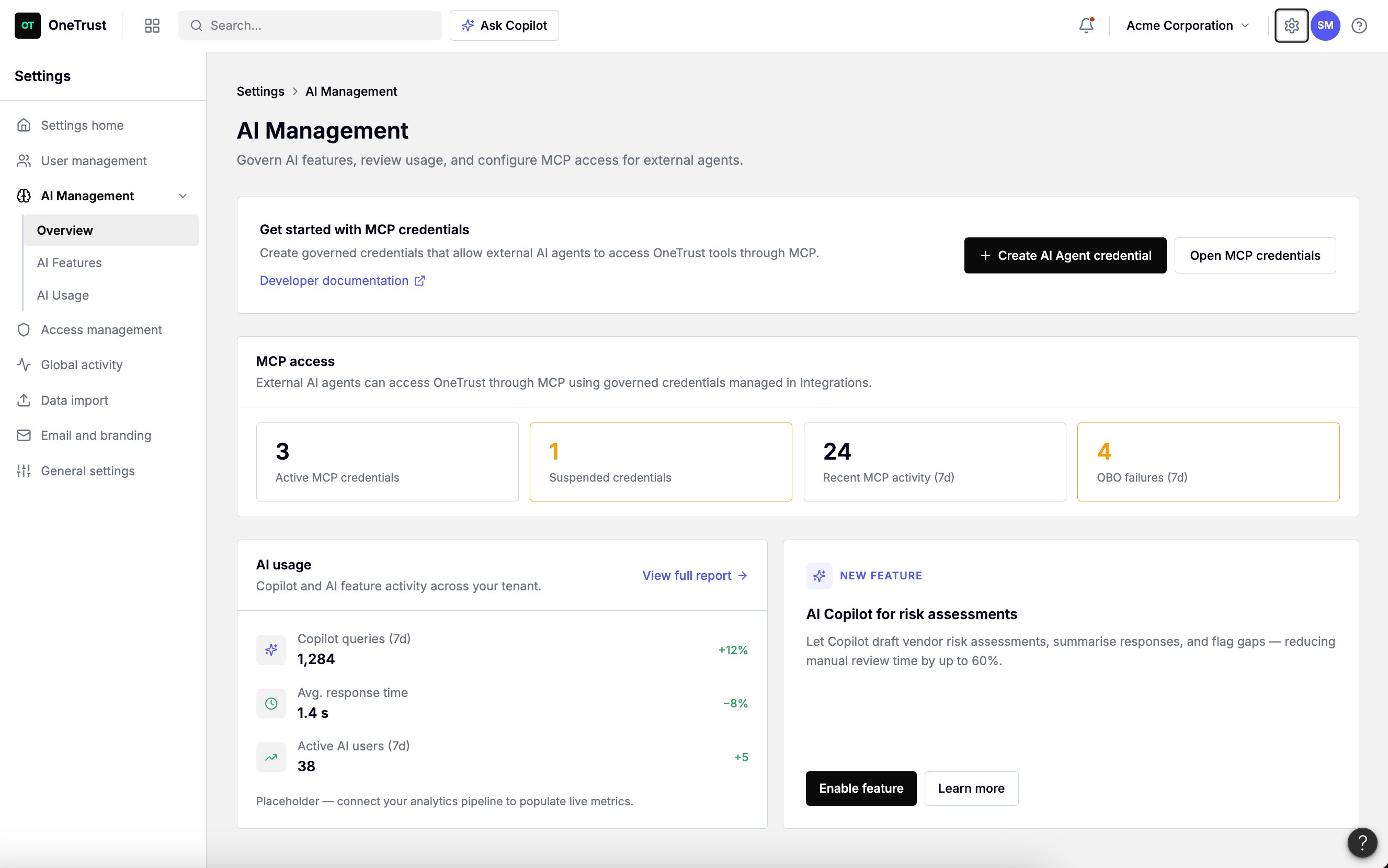

AI Management overview — 3 active MCP credentials, 24 recent actions, AI usage metrics, and a new feature callout for Copilot risk assessments

The credential creation flow

The creation experience is a five-step wizard: credential type → name & options → define access → user context → review & issue. A persistent summary panel on the right keeps the admin oriented throughout, showing exactly what they've configured so far.

Step one makes the fork explicit: AI Agent / MCP credentials (OBO user binding, tool-level scoping) versus Standard API credentials (module-based, no OBO). Getting this decision right upfront prevents misconfigured access and sets the right governance expectations from the start.

Step 1 — Credential type. The two options are clearly differentiated by use case, not just by name. The live summary panel confirms the selection immediately.

Step two configures name, description, access token lifetime, and IP restrictions. The placeholder copy ("e.g. Vendor Intake Agent") reinforces the mental model — this is a named agent, not a generic API key.

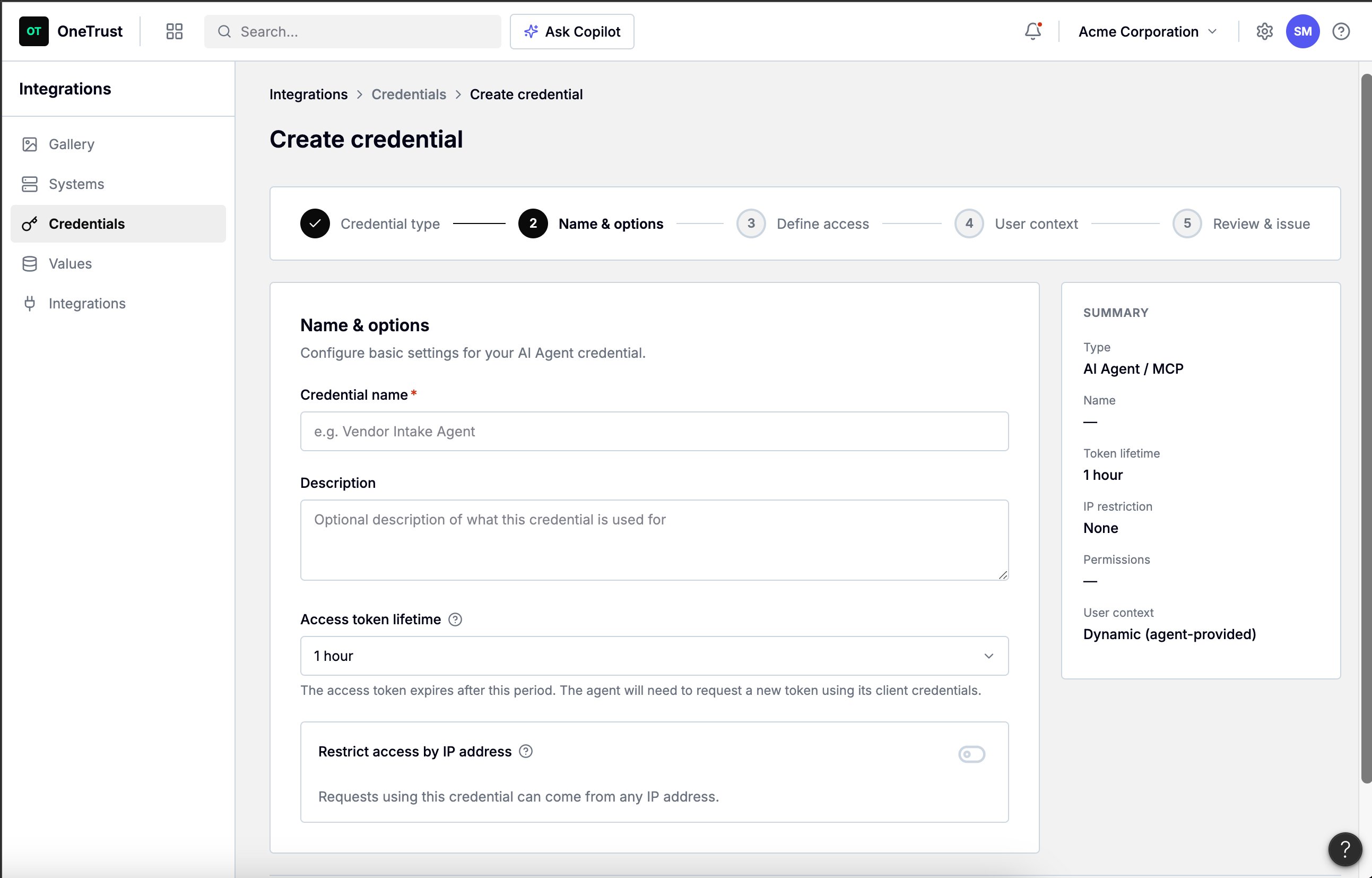

Step 2 — Name & options. Token lifetime defaults to 1 hour — short by design, reinforcing least-privilege and reducing exposure from leaked credentials.

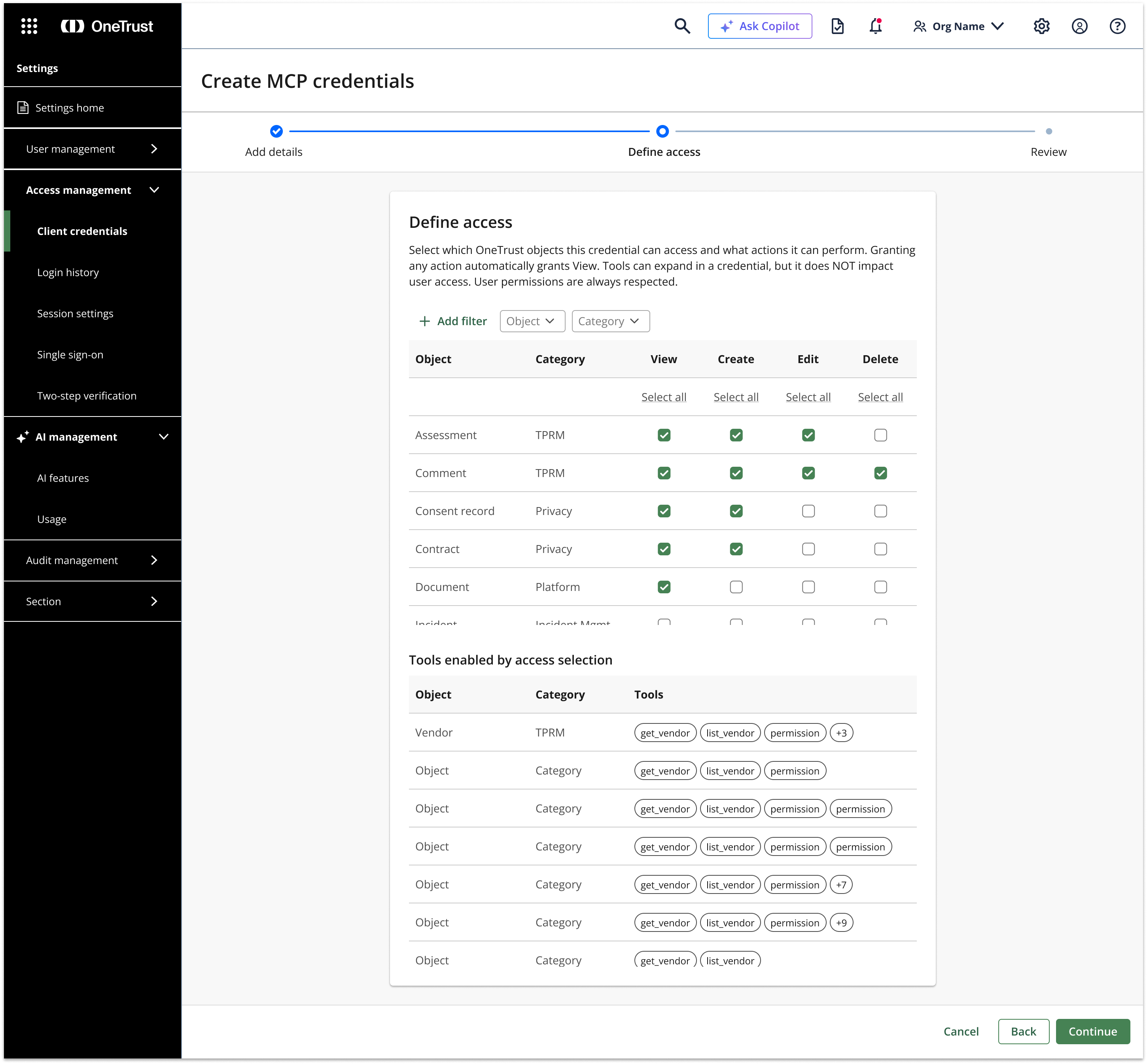

Step three is where the governance model comes to life — a matrix of OneTrust objects (Vendor, Assessment, Risk, Contract, Consent record, etc.) across permission types (Read, Create, Update, Delete, Launch workflow, Approve/reject). Developers grant only what the agent needs. This is an early prototype exploring the interaction model for granular object-level scoping.

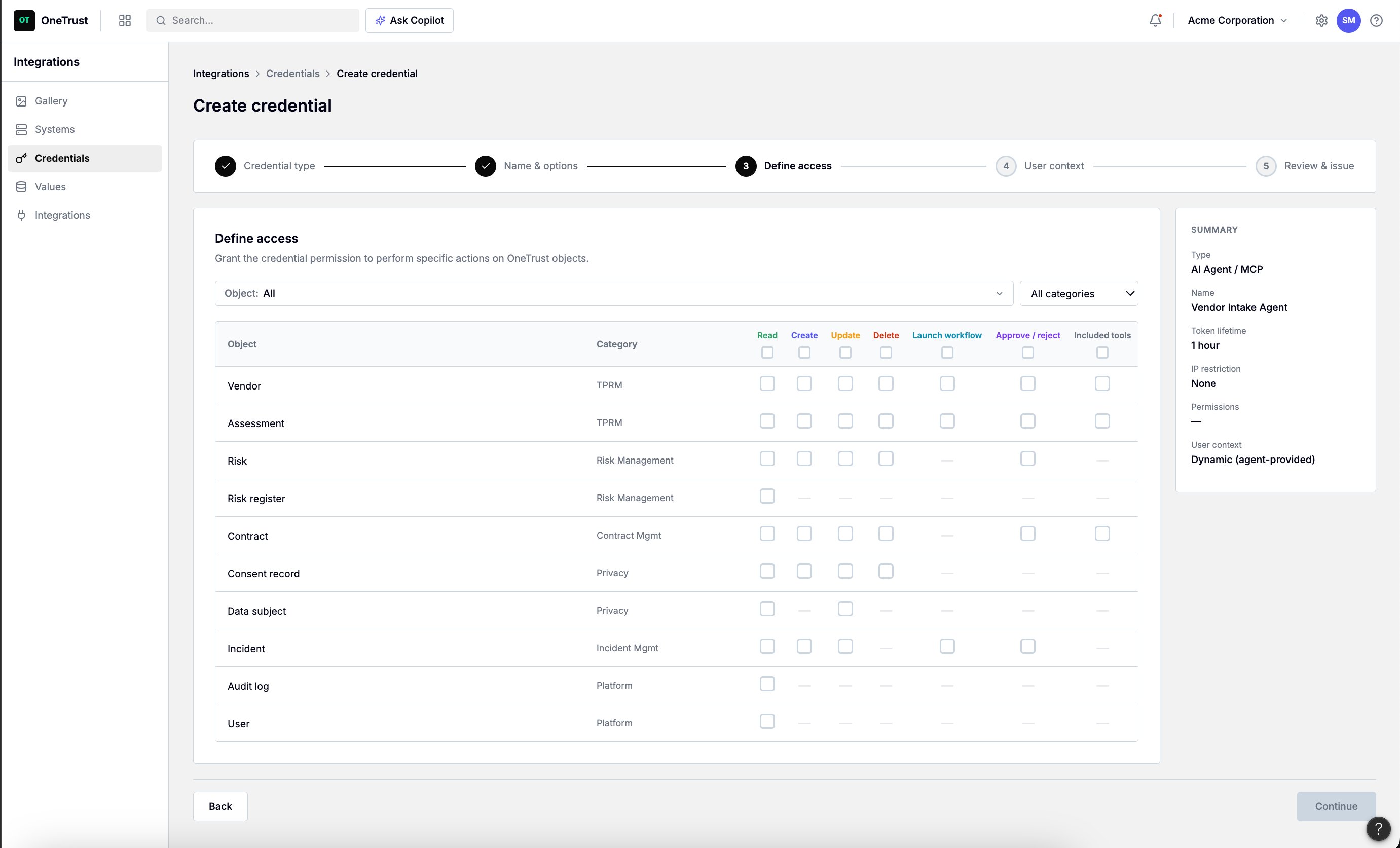

Step 3 — Define access. Object-level permission matrix across OneTrust's product domains. Early prototype — the column header treatment and visual hierarchy are areas actively being refined.

Step four is arguably the most important governance decision: how should OneTrust identify the human user behind actions taken by the agent? Dynamic user context (OBO) means the agent passes the current user's identity at token exchange, so every action is attributed to the real person operating the agent, not a generic service account. The activity attribution preview makes this concrete before the admin commits.

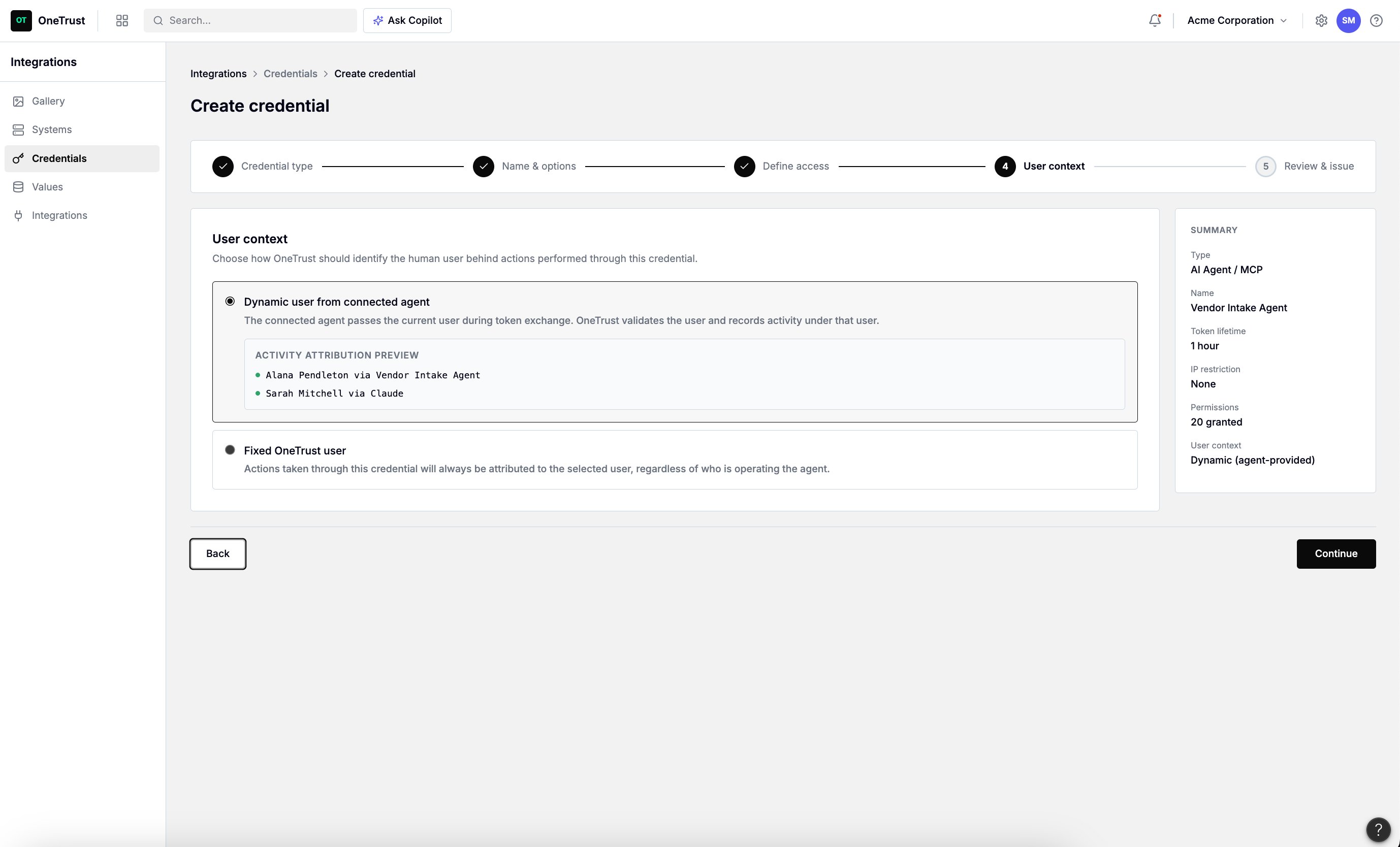

Step 4 — User context. "Alana Pendleton via Vendor Intake Agent" — the attribution preview shows exactly how AI-mediated actions will appear in audit logs, making the governance implications tangible at setup time.

Design principles

What's next

The credential experience is one piece of a broader AI-first platform strategy. Upcoming work includes the intent-based scope selector with inline tool descriptions and data-touch disclosures, OBO user binding and federation guidance, the developer portal MCP landing and live tool catalog, and the AI attribution patterns for audit logs and record metadata.
